Mastering Sheet Metal Bending Techniques: A Comprehensive Guide

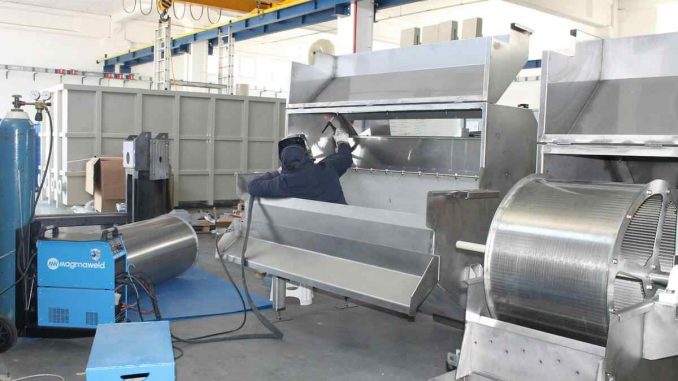

sheet metal bending techniques

Sheet metal bending is a crucial process in metal fabrication, enabling the transformation of flat metal sheets into desired shapes and forms for various applications. From creating simple bends to complex geometries, mastering sheet metal bending techniques is essential for achieving precision and efficiency in manufacturing. This article delves into the fundamental techniques, tools, and considerations for effective sheet metal bending.



Understanding Sheet Metal Bending

Sheet metal bending involves deforming a metal sheet to achieve a specific angle or shape without altering its thickness. This process is widely used in industries such as automotive, aerospace, construction, and electronics. The primary goal is to create parts and components with precise dimensions and consistent quality.



Key Techniques in Sheet Metal Bending

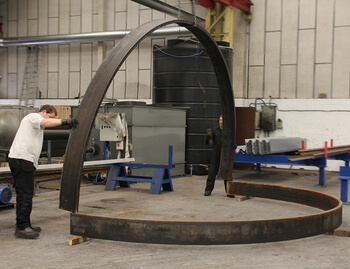

  1. Air Bendingguide tips sheet metal bend

Air bending is one of the most common techniques due to its versatility and ease of execution. In air bending, the sheet metal is placed on a die, and a punch applies force to bend the metal. The punch does not come into full contact with the die, allowing for variations in the bend angle by adjusting the punch’s depth. This technique is suitable for a wide range of materials and thicknesses.



  1. Bottoming

Bottoming, also known as bottom bending or coining, involves pressing the sheet metal between a punch and die until it fully conforms to the die’s shape. This technique provides high precision and repeatability, making it ideal for applications requiring tight tolerances. However, bottoming requires more force and can lead to increased tool wear.



  1. Coining

Coining is a precise bending technique where the punch and die fully compress the sheet metal, causing plastic deformation. This process results in highly accurate bends with minimal springback, making it suitable for producing intricate and detailed components. Coining is often used in applications where precision is critical, such as in the production of electronic enclosures.



  1. Wipe Bending

Wipe bending involves clamping the sheet metal against a die while a punch moves across the metal’s surface, creating a bend. This technique is commonly used for creating simple bends with a consistent radius. Wipe bending is efficient and cost-effective for producing large quantities of parts with uniform bends.



  1. Roll Bending

Roll bending uses a set of rollers to gradually bend the sheet metal into a curved shape. This technique is ideal for producing large-radius bends and cylindrical shapes, such as pipes and tubes. Roll bending is versatile and can accommodate various thicknesses and materials, making it a popular choice in the construction and transportation industries.



  1. Rotary Bending

Rotary bending involves using a rotary die to apply force to the sheet metal, creating a bend. This technique is known for its ability to produce complex bends and is often used in applications where traditional bending methods may not be suitable. Rotary bending is efficient and can achieve high precision, making it valuable in aerospace and automotive manufacturing.



Essential Tools for Sheet Metal Bending

To achieve precise and consistent bends, selecting the right tools is crucial. The primary tools used in sheet metal bending include:



  1. Press Brake

A press brake is a machine used to bend sheet metal by applying force through a punch and die. It is available in various sizes and configurations, including hydraulic, mechanical, and CNC-controlled press brakes. CNC press brakes offer advanced automation and precision, making them ideal for complex bending operations.



  1. Bending Dies

Bending dies come in various shapes and sizes to accommodate different bending techniques and applications. Common types of dies include V-dies, U-dies, and radius dies. Selecting the appropriate die is essential for achieving the desired bend angle and radius.



  1. Punches

Punches are used in conjunction with dies to apply force and create bends in the sheet metal. They come in various shapes and sizes, including standard punches, gooseneck punches, and offset punches. The choice of punch depends on the bending technique and the complexity of the bend.



  1. Bending Jigs

Bending jigs are custom-made tools used to hold the sheet metal in place during the bending process. They ensure consistent bends and are particularly useful for producing large quantities of parts with the same dimensions. Bending jigs are commonly used in wipe bending and rotary bending applications.

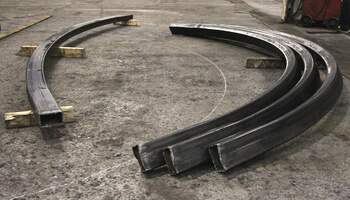

Factors Influencing Sheet Metal Bending

Several factors can influence the outcome of the sheet metal bending process, including:



  1. Material Properties

The type of material being bent significantly impacts the bending process. Different metals, such as steel, aluminum, and copper, have varying levels of ductility and hardness, affecting their ability to bend without cracking or deforming. Understanding the material properties is essential for selecting the appropriate bending technique and tools.



  1. Thickness of the Sheet Metal

The thickness of the sheet metal determines the amount of force required for bending. Thicker sheets require more force and may necessitate the use of heavy-duty equipment, such as hydraulic press brakes. Additionally, the thickness can influence the bend radius and angle, requiring careful consideration during the planning phase.



  1. Bend Radius

The bend radius refers to the inside curvature of the bend. It is crucial to maintain a proper bend radius to prevent cracking or deformation of the sheet metal. The minimum bend radius is typically determined by the material properties and thickness. Adhering to the recommended bend radius ensures the structural integrity of the bent component.



  1. Springback

Springback occurs when the sheet metal tries to return to its original shape after the bending force is removed. This phenomenon is influenced by the material’s elasticity and thickness. To compensate for springback, operators may need to over-bend the metal or use techniques such as bottoming and coining to achieve the desired bend angle.



  1. Tooling and Machine Settings

Proper tooling and machine settings are critical for achieving accurate and consistent bends. Ensuring that the punch and die are correctly aligned and selecting the appropriate tooling for the specific bending technique are essential steps. Additionally, adjusting the machine settings, such as the bend angle and force, helps achieve the desired results.



Beltech Engineering’s comprehensive metal fabrication services



Conclusion

Mastering sheet metal bending techniques is essential for producing high-quality components with precision and efficiency. By understanding the various bending techniques, selecting the appropriate tools, and considering the factors influencing the bending process, manufacturers can achieve consistent and accurate bends in sheet metal. Whether it’s air bending, bottoming, coining, or roll bending, each technique offers unique advantages and applications, making sheet metal bending a versatile and indispensable process in modern manufacturing.
