Exploring Underground Mining Methods: An Insight into Techniques and Equipment

underground mining methods

Underground mining is a critical component of the mining industry, providing access to valuable minerals and ores that are not viable through surface mining. Understanding the various underground mining methods is essential for professionals in the field. This article delves into the primary techniques used in underground mining, emphasizing the use of mining explosive equipment, and highlights their advantages, challenges, and applications.



Types of Underground Mining Methods



1. Room and Pillar Mining

type mining methods undergroundRoom and pillar mining is one of the oldest underground mining methods, commonly used for flat-lying deposits. This method involves excavating rooms while leaving pillars of ore to support the roof of the mine. The process is relatively simple and cost-effective, making it suitable for extracting coal, gypsum, and other minerals.

  • Advantages:
    • High productivity and efficiency
    • Lower upfront capital investment
    • Flexibility in mining operations
  • Challenges:
    • Limited to flat or gently dipping ore bodies
    • Risk of ground subsidence if pillars are not adequately sized



2. Longwall Mining

Longwall mining is highly mechanized and used extensively in coal mining. This method involves the use of a longwall shearer, which moves along a conveyor to cut and remove the ore. Hydraulic supports temporarily hold up the roof until the ore is removed, allowing the roof to collapse in a controlled manner.

  • Advantages:
    • High extraction rate
    • Continuous operation with minimal manual labor
    • Reduced surface disturbance
  • Challenges:
    • Significant initial investment in equipment
    • Complex operation requiring skilled labor
    • Potential for ground control issues



3. Cut and Fill Mining

Cut and fill mining is a selective and adaptable method used for steeply dipping ore bodies. It involves excavating a section of ore, filling the void with waste rock or tailings, and repeating the process in a new section. This method is particularly useful for extracting precious metals like gold and silver.

  • Advantages:
    • High ore recovery
    • Suitable for irregular ore bodies
    • Provides good ground control
  • Challenges:
    • Higher operating costs
    • Slower production rate compared to other methods
    • Requires a continuous supply of backfill material



4. Sublevel Stoping

Sublevel stoping is employed for large, steeply dipping ore bodies. In this method, ore is blasted and broken from sublevels developed at intervals above the main haulage level. Ore is then collected and transported to the surface.

  • Advantages:
    • High production rate
    • Good ore recovery
    • Economical for large ore bodies
  • Challenges:
    • Requires detailed planning and precise drilling
    • Higher initial development costs
    • Potential for ground stability issues



5. Block Caving

Block caving is a mass mining method suited for low-grade, large-scale ore bodies. It involves undermining an ore body and allowing it to collapse under its own weight. The broken ore is then removed through a series of draw points.

  • Advantages:
    • Economical for large-scale operations
    • High production rates
    • Lower operating costs
  • Challenges:
    • High initial capital investment
    • Complex ground control and management
    • Requires extensive infrastructure development



Role of Mining Explosive Equipment in Underground Mining

Mining explosive equipment plays a pivotal role in most underground mining methods, providing the means to break and fragment rock efficiently. The use of explosives in underground mining is a sophisticated process that involves careful planning, precise execution, and stringent safety measures.



1. Drilling and Blasting

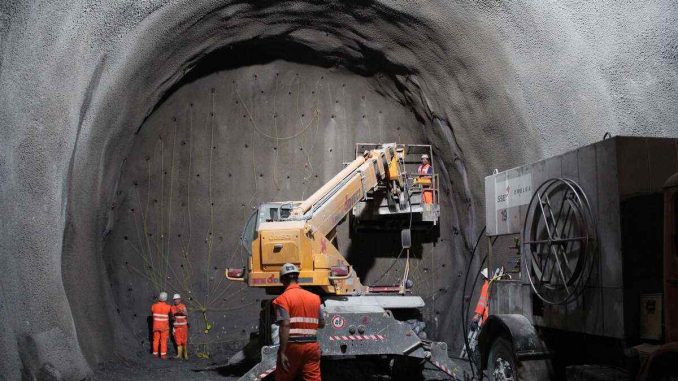

Drilling and blasting is a primary technique in underground mining, used to create tunnels, shafts, and chambers. The process involves drilling holes into the rock, filling them with explosives, and detonating them to break the rock.



  • Types of Explosives:
    • ANFO (Ammonium Nitrate Fuel Oil)
    • Emulsion explosives
    • Dynamite
  • Equipment:
    • Drill rigs
    • Blasting machines
    • Detonators and initiation systems



2. Controlled Blasting

Controlled blasting techniques, such as pre-splitting, smooth blasting, and cushion blasting, are employed to minimize damage to the surrounding rock and improve safety. These methods involve using smaller charges and precise timing to control the direction and extent of rock breakage.



3. Secondary Blasting

Secondary blasting is used to break down large boulders or oversize fragments that are too big to be handled by the primary crushing equipment. This process ensures that all broken rock is of manageable size for transport and processing.



4. Safety Considerations

Safety is paramount in the use of mining explosive equipment. Strict regulations and guidelines govern the handling, storage, and use of explosives. Miners must be trained in safe practices, and modern technology, such as electronic blasting systems, enhances safety and efficiency.



Applications and Case Studies



1. Coal Mining in Australia

In Australia, longwall mining has been the dominant method for coal extraction. The use of advanced longwall shearers and hydraulic supports has revolutionized the industry, enabling high productivity and safer operations.



applications mining underground method2. Gold Mining in South Africa

Cut and fill mining is widely used in South Africa’s gold mines. The method’s adaptability to varying ore body shapes and its ability to control ground stability have made it a preferred choice for extracting high-value minerals.



3. Copper Mining in Chile

Chile’s large-scale copper mines, such as El Teniente and Chuquicamata, utilize block caving methods. This technique allows for the economic extraction of massive ore bodies, supporting the country’s position as a leading copper producer.



Conclusion

Underground mining methods are diverse and tailored to the specific characteristics of the ore body being mined. Each method has its unique advantages and challenges, and the choice of method depends on factors such as ore body geometry, depth, and economic considerations. The integration of mining explosive equipment is crucial in enhancing the efficiency and safety of these operations. As technology advances, the mining industry continues to evolve, developing more sophisticated techniques and equipment to meet the growing demand for minerals and metals.

By understanding these underground mining methods and the role of explosive equipment, professionals in the mining industry can make informed decisions that optimize productivity, ensure safety, and contribute to sustainable mining practices.
